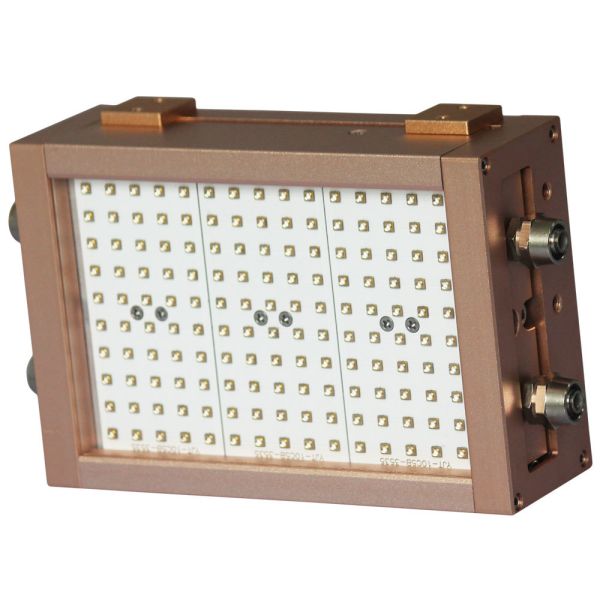

UV Curing Solution Ultraviolet Light Curing UV Lamp For Screen Printing Machine
UV Curing Solution Description
The UV LED lamp is the premier new solution for ultraviolet curing today. This advanced technology delivers superior speed and performance in drying UV-curable materials—from inks and adhesives to specialized coatings.
UV Curing Solution Datasheet
|
Model | CG-CT10-1000*45-6000A/C | lamp color | Rose golden |
|
Power
| 6000W | Chip brand | LG/Seoul |
|
Input voltage
| AC85-265V | Wave length | 365/385/395/405nm |
|
Application
| UV ink/vanish/coating /adhesive curing | Life span | 20000H |
|
Cooling way
| Water cooling | Emitting window size | customized |
|
UV intensity
| 18W/CM2 | Dimmable | 0%-100% |
|
Best emitting distance
| 30-50mm | Package | wooden case |
UV Curing Solution Advantages
- Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
- Environment friendly , No mercury. No ozone making and VOC discharge.
- NO warm-up , turn on/off instantly.
- Low temperature, can be used for PE and film ink curing .
- Long lifespan, 20000hours .
UV Curing Solution FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2: LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
